Product test: Toro Workman MDX Lithium


James de Havilland
Technical Freelance WriterThe Workman MDX Lithium is put through its paces in an independent machinery test
The entry level MDX Workman is a light utility vehicle with a proven heritage in 14hp petrol powered form. Basic, simple, with room for two and a rear cargo bed with a capacity of just over half a tonne. The lithium battery electric MDX takes this basic formula, adds low operating costs with an even smoother and effortless drive. As it quietly goes about its business, it is all too easy to just work this little tool without giving a thought to the lithium ion battery technology that makes its effortless performance so accessible.
Unlike heavy lead acid batteries, the 8.64kWh lithium battery in the MDX needs no maintenance, just an energy top up via a three-pin plug. The charger is built in. Toro suggests the battery will hold enough power to keep the Workman running ‘for a day’, so an overnight charge should be enough to keep the little UTV on the go with little need for any other attention.
There are two drive modes, with standard enabling the MDX Lithium to reach a heady 19mph/30.5km/hour. In Eco mode, the travel speed is down to just 16mph/25km/hr. These modest speeds ideally suit this type of utility vehicle, as does the quiet running. Next up, you can have a conversation with your passenger, take in your surroundings with unhurried fuss and easily work in noise sensitive areas – and when it comes to ‘refuelling’, simply plug the detachable cable into 13amp three-pin socket.
Those who use electric power, be it for a vehicle or mower, will suggest charging little and often charging works best. As the MDX Lithium charges via a ‘domestic’ 13amp socket, there will be easy access to charging points – a top up is simple in other words.
But it is the drive that will impress those used to a petrol powered MDX the most. Although the petrol version is far from noisy, it is still vocal enough for driver and passenger to raise their voices to converse. No such problems with the lithium battery powered model. The only noise during my drive was that of the empty cargo bed rumbling over rough ground, with even this getting silenced by pressing the electric tipper switch down as it turned out the body was not fully lowered on its stops!
When it came to running around, being able to jump on and off the MDX with no need to apply a handbrake on an incline was standout handy. This easy stop and go ability would make using a vehicle like this to empty litter bins or stop-start dropping and picking up loads repeatedly easy. The cargo bed is a decent size too, the rear tailgate lowering by lifting it free of its stops and folding it down. No clips or fuss.
With the electric motor driving the just rear wheels, those at the front are free to have a tight turn angle, the resulting agility being another plus. Add the gentle but still decent pick up in speed, and this little MDX will prove a nippy little helper for a whole range of end users. It can even tow a trailer of up to 544kg with a suitable tow hitch fitted, although the MDX is not designed to offer this ability over rough ground.
Those after a handy little load lugger, that can carry two in effortless comfort, need to give a Workman MTX Lithimum a serious look. Its petrol powered sibling will do the same job, but the battery powered model wins on ease of use, reduced operating costs, low noise and ease of operation.
-
Active-in-Frame twister pivot point may be a bit of a mouthful, but in practice this system splits the chassis to enable the front and rear axles to remain in contact with the ground when crossing uneven ground. As can be seen, the level of pivot is good for around 125mm of travel (inset right).
-

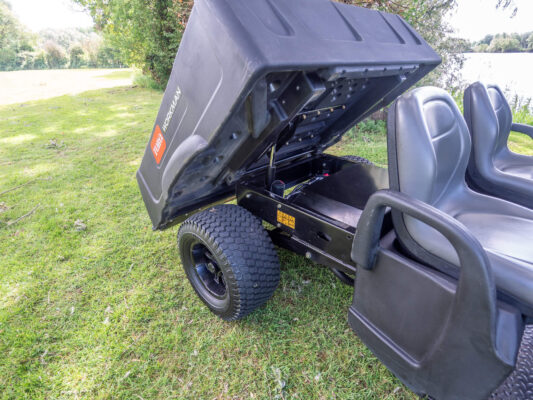

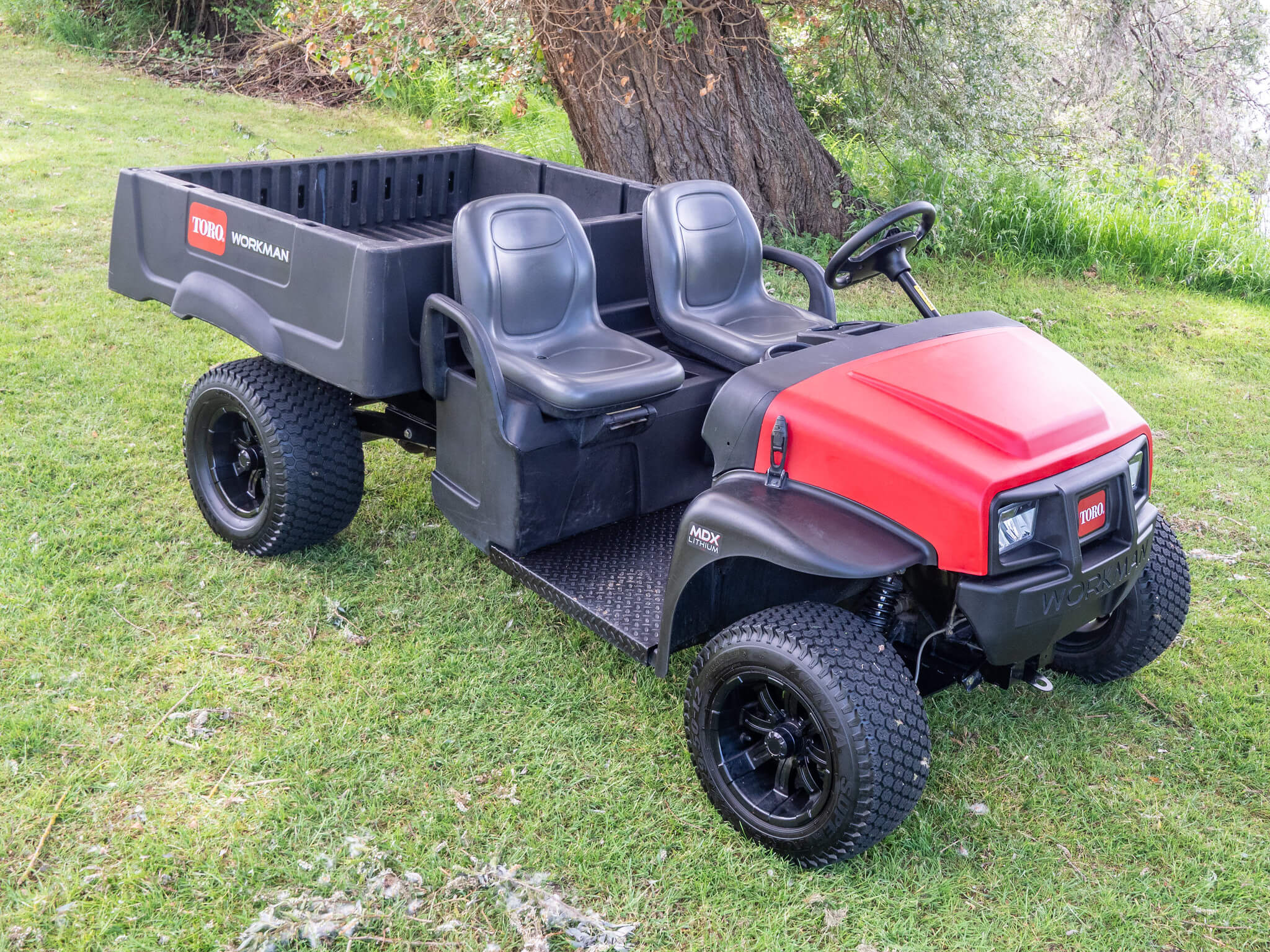

Made from double-skin linear low-density polyethylene, the cargo body is designed to be light, durable and resistant to corrosion. This type of body should withstand a degree of abuse whilst also providing an easy clean surface. An electric tip ram is an option.
-

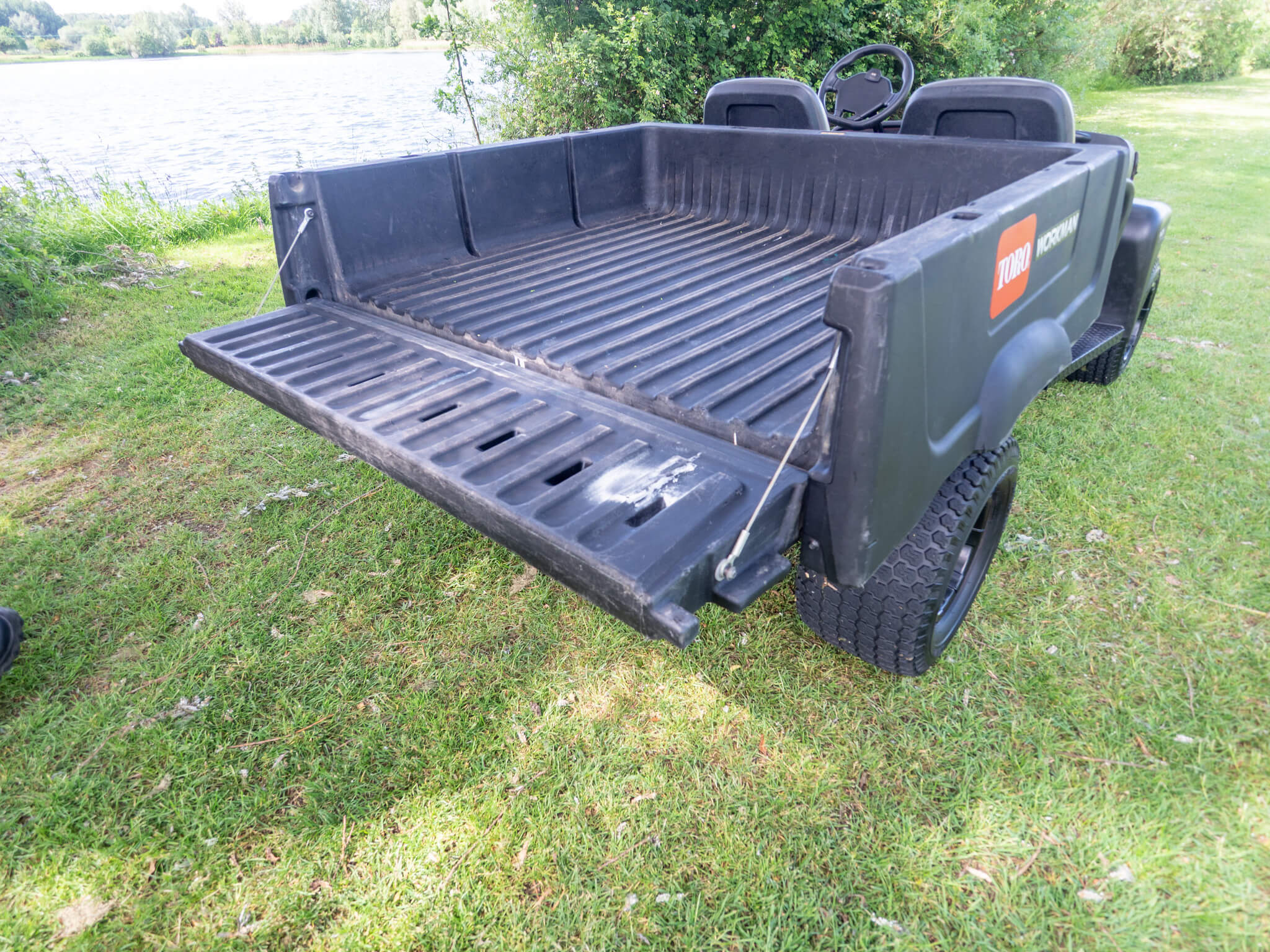

Measuring 1.25m across, the 1.13m long cargo bed will accommodate longer loads with the rear tailgate open. The latter is raised up to unhitch and rear load capacity is 567kg.
-

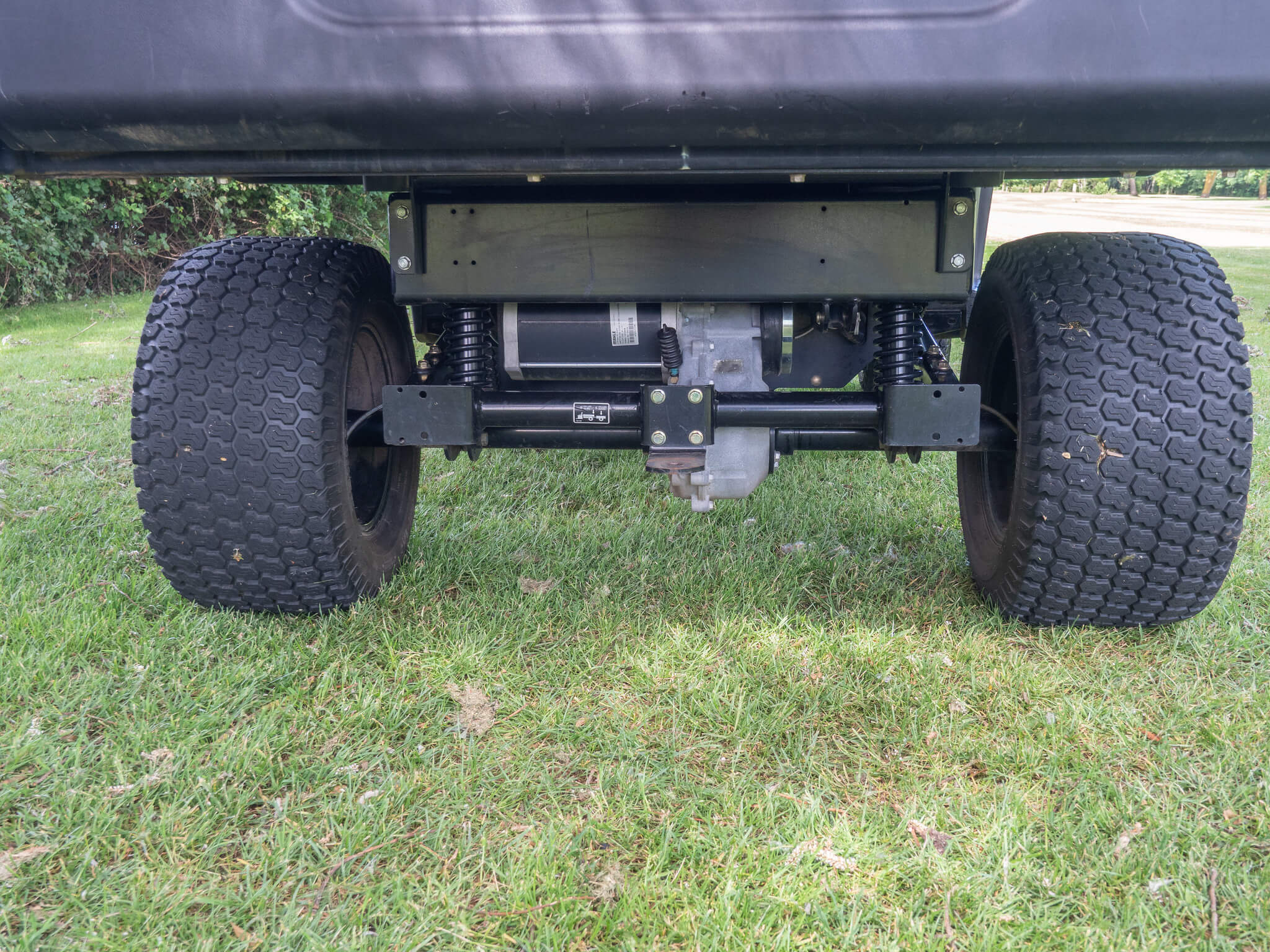

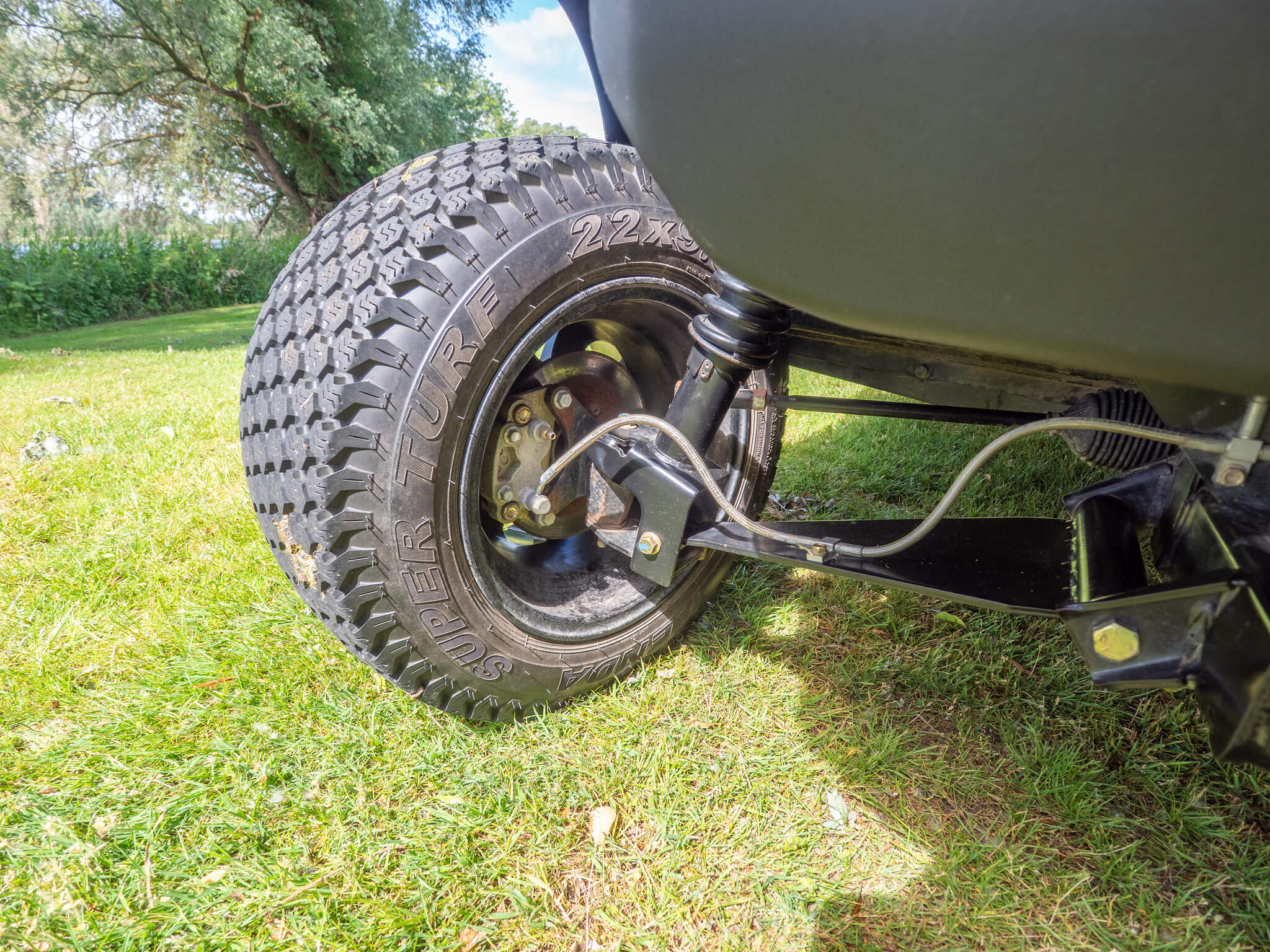

The electric drive motor sits over the rear axle and features coil over hydraulic dampers and disc brakes front and rear.
-
Up front, there is independent suspension, with the rack and pinion steering making it easy to pilot the Workman over rough ground with accurate steering when travelling at the admittedly modest top speed. The generous steering angle gives a tight turning circle, this coming in at 0.65m measured from the outside front wheel. A full lock-to-lock turn is completed in 2.75 spins of the steering wheel. Agility is first class.
-
The large brake pedal can be used to deliver a swift stop, but most of time all you need to do is ease off the travel pedal and allow the Workman to come to a gentle stop. As there is no need to apply a handbrake, it is easy to jump off the machine to open a gate or lift something out of the back and then just get back on, press the pedal to get going again.
-

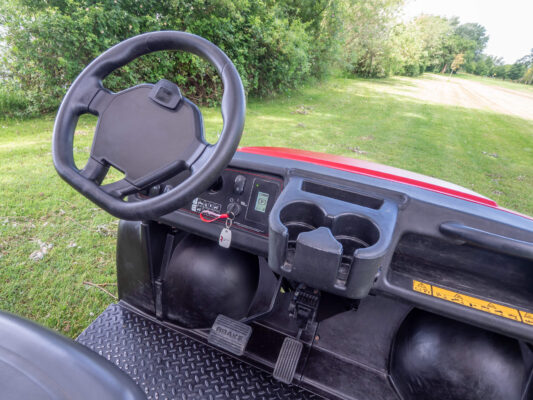

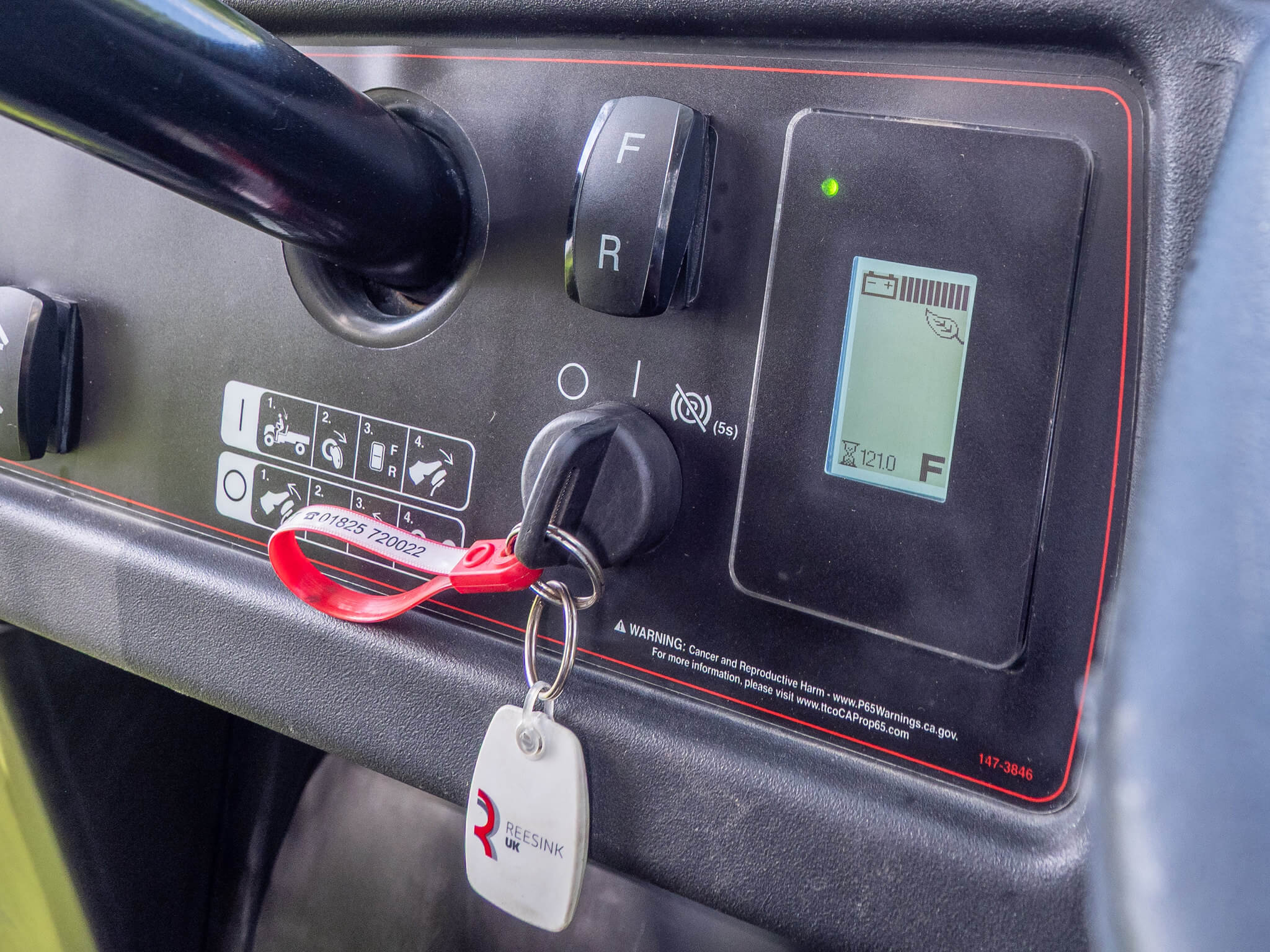

A small display shows the battery capacity with the driving mode shown underneath, the leaf emblem identifying that ECO mode has been selected. The toggle switch by the steering column selects forward or reverse. When first turning the key to on, the brake pedal needs to be depressed. The machine is now ready to go.
-

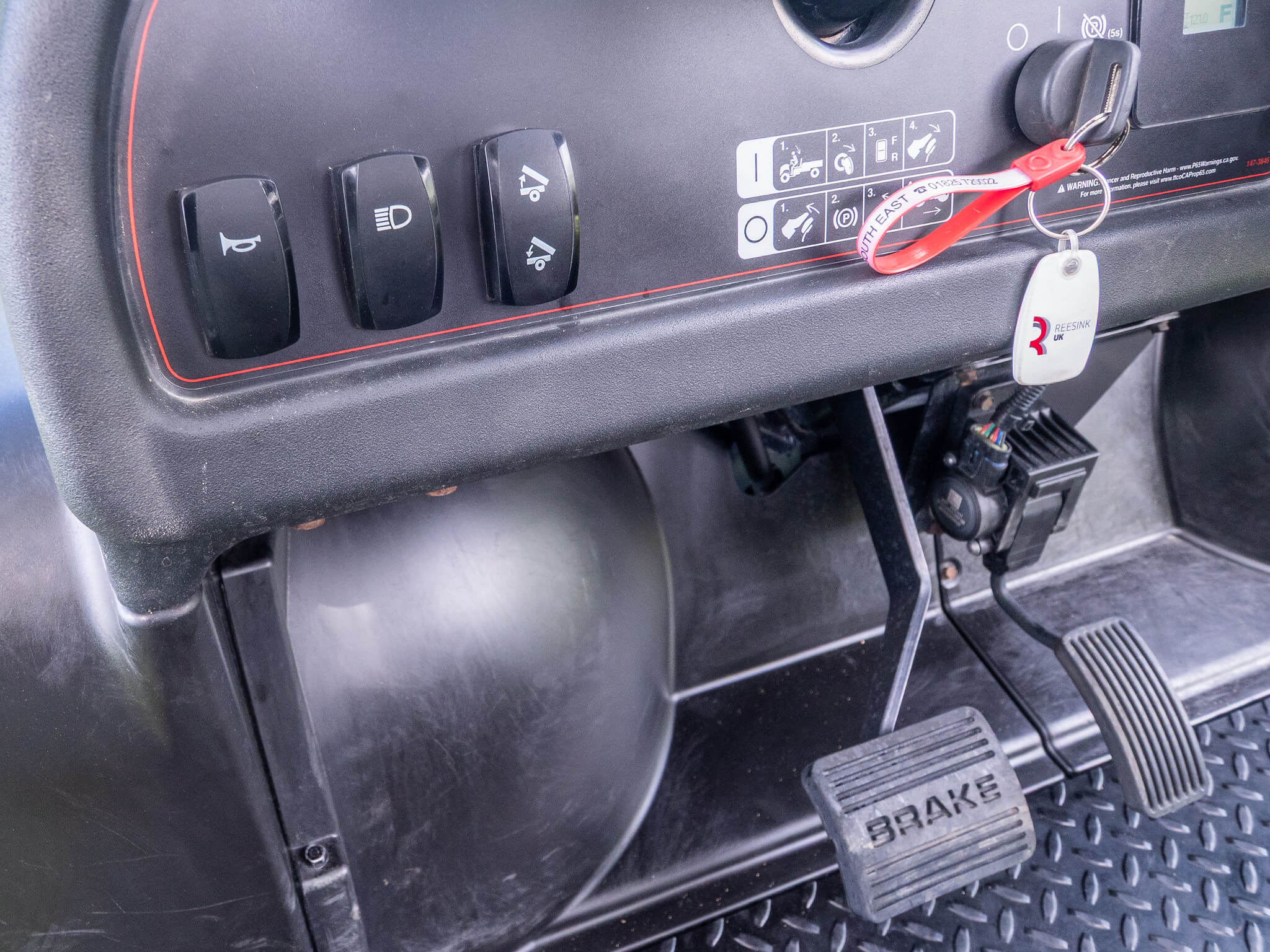

Three toggle switches for the horn, lights and optional electric body tip complete the main controls.
-

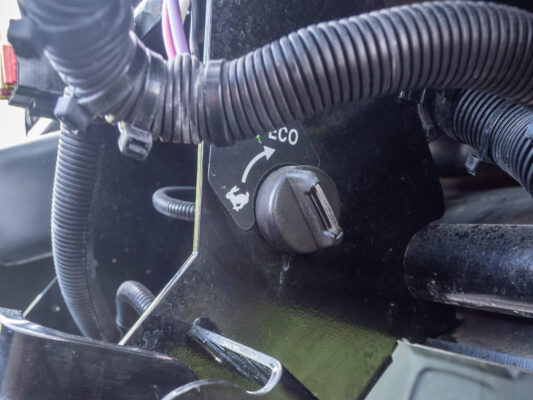

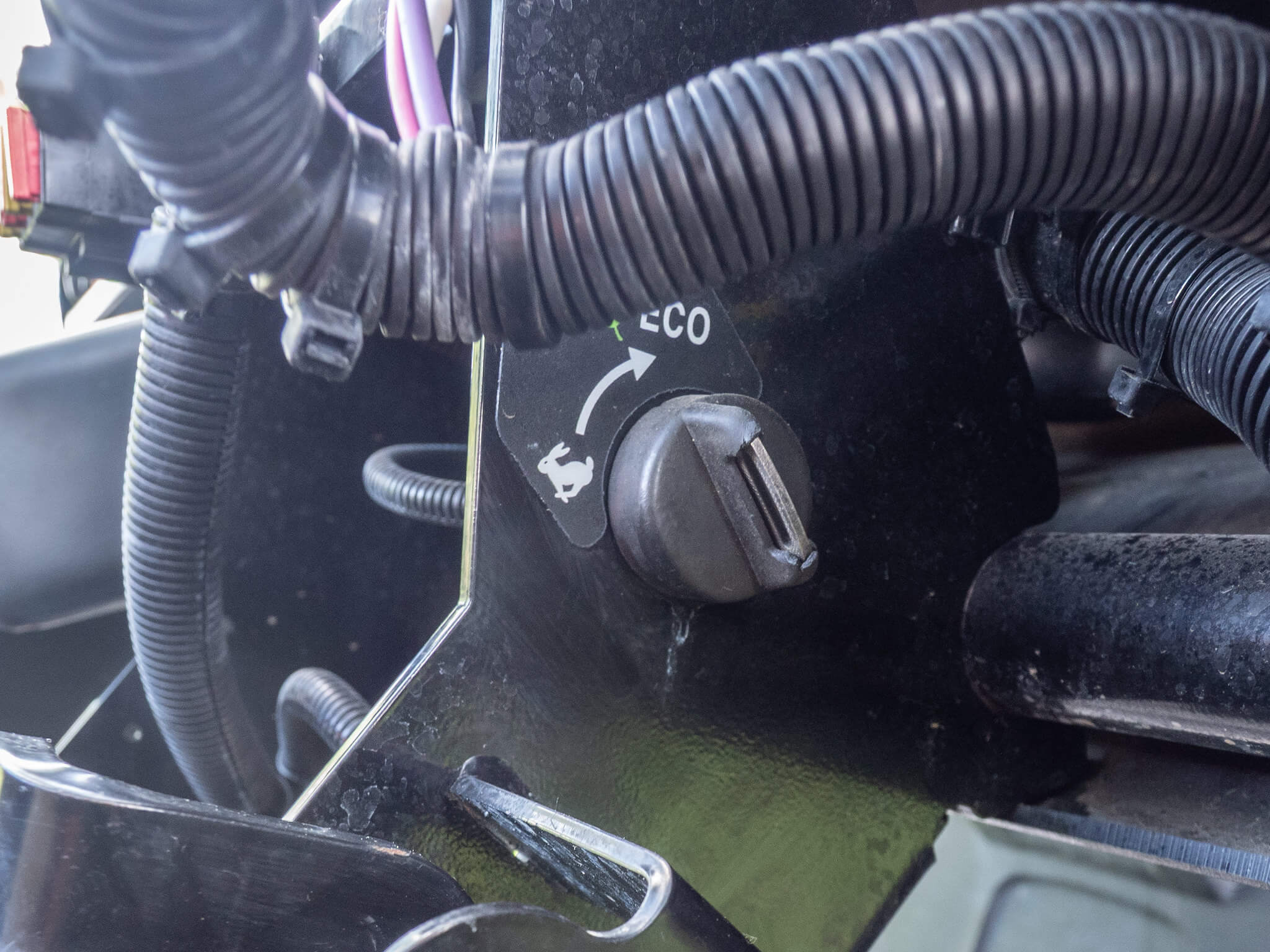

Located under the front hood is the drive mode selector. Worked via a removable key, there are two settings, standard and ECO. The latter sets the speed of the UTV to around 16mph/25km/hr. In both modes the Workman accelerates in a smooth and linear fashion with no tendency to snatch off the line with turf damaging consequences.
-

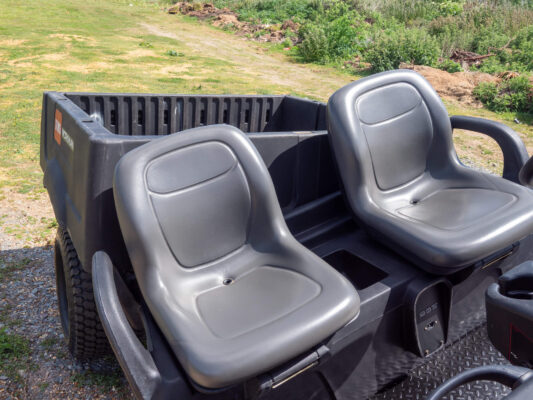

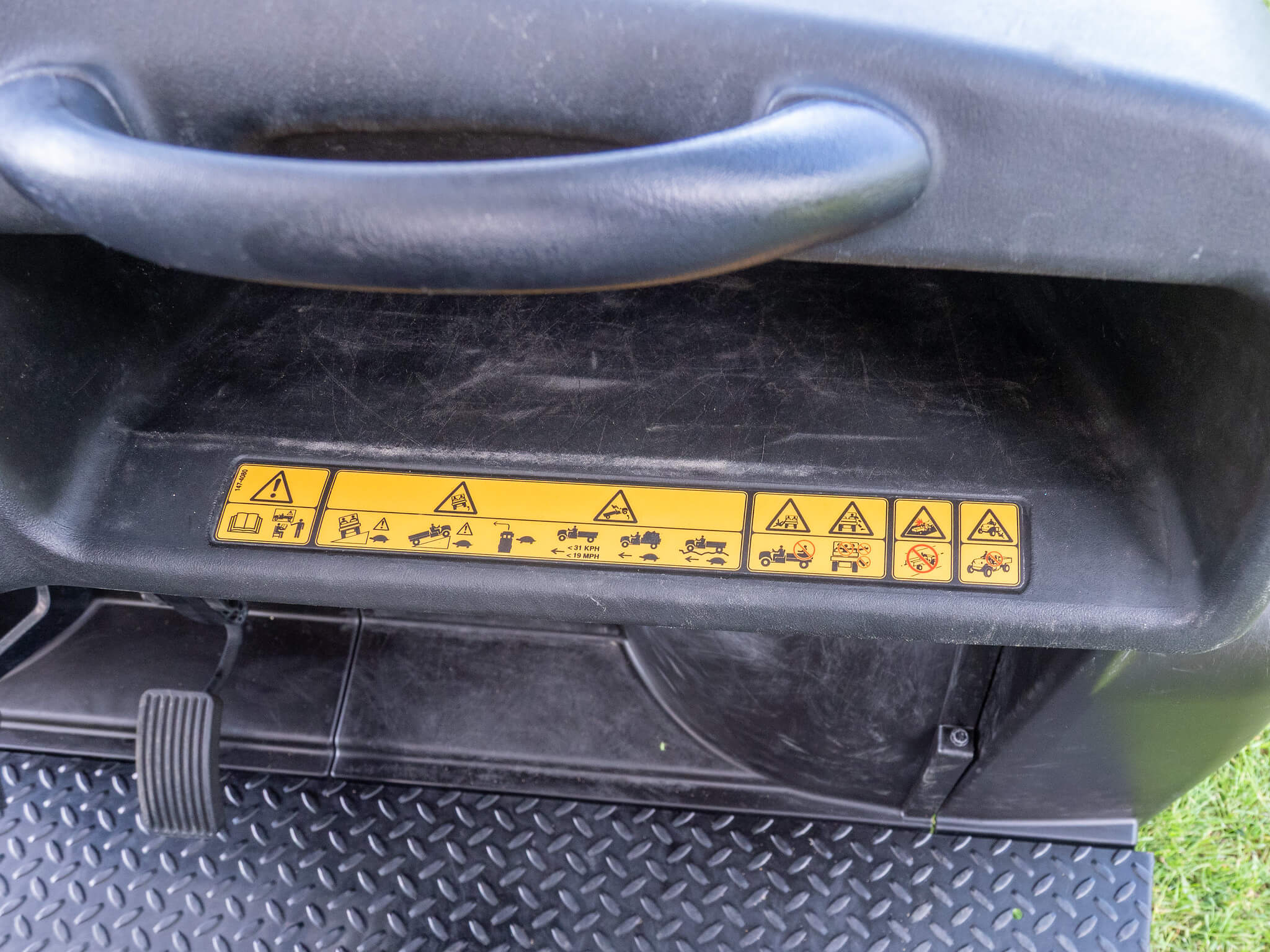

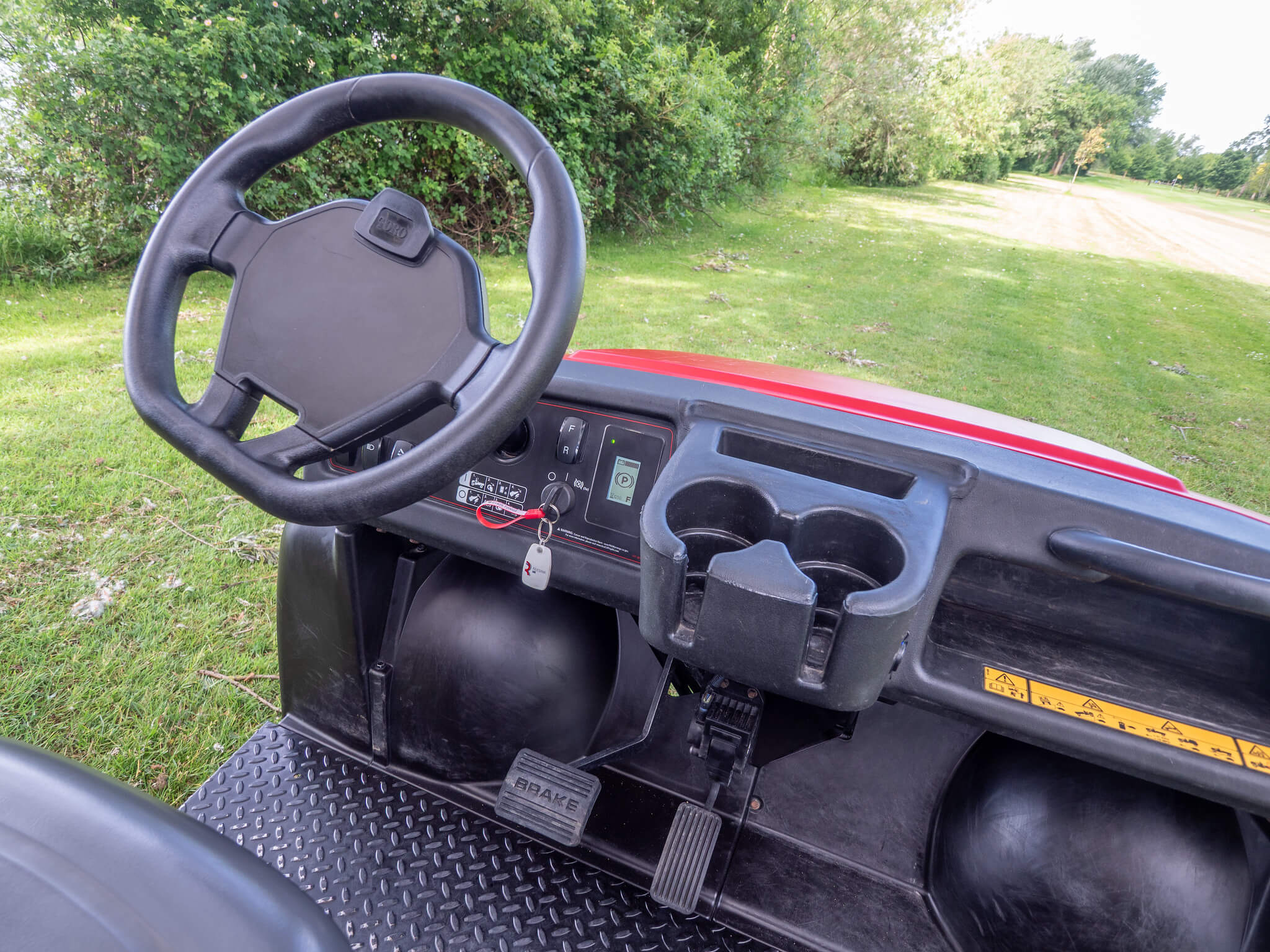

Small dash and under seat cubbies provide storage space, along with a couple of cup holders with USB charge port. Although the seats and fittings a basic, the Workman is surprisingly comfortable.
-

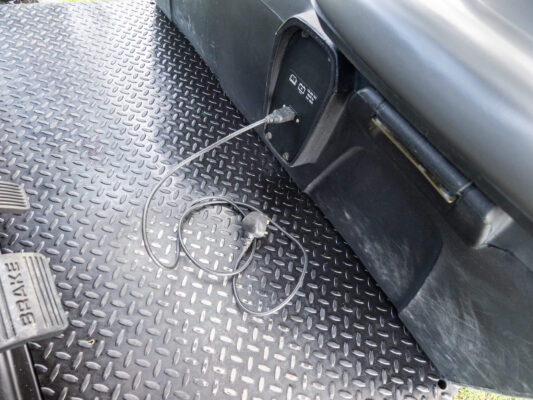

The in-built charger is designed to charge the lithium battery back, intelligent control ensuring the batteries are maintained with no need for any input form the user. Although the system will charge the batteries from flat to full overnight, little and often charging is also possible, the ability to charge from a standard 13amp socket making this straightforward.
-

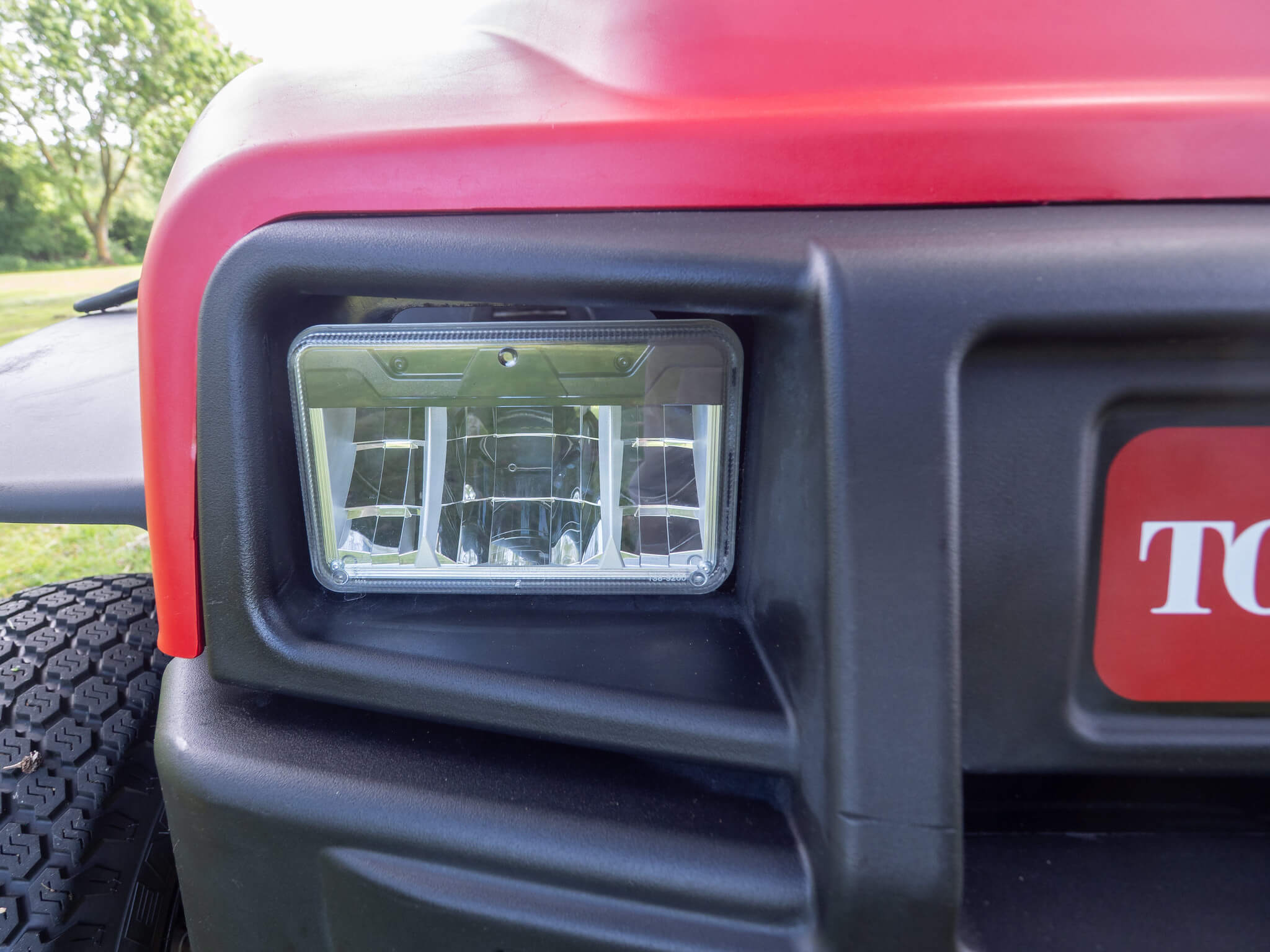

LED headlights are part of the standard package drawing a modest current from the battery as well as providing bright lighting.
-
You would be hard pressed to differentiate the MDX Lithium battery powered Toro Workman from its petrol-powered siblings, but as soon as you jump aboard and drive, the battery powered model’s swift and quiet progress will impress. Unlike electric utility vehicles with lead-acid batteries, the lithium MDX has no electrolyte to top up with so no need to worry about battery management. Costs to charge the battery overnight should be modest, this helping to peg whole life operating costs.
Toro Workman MDX Lithium

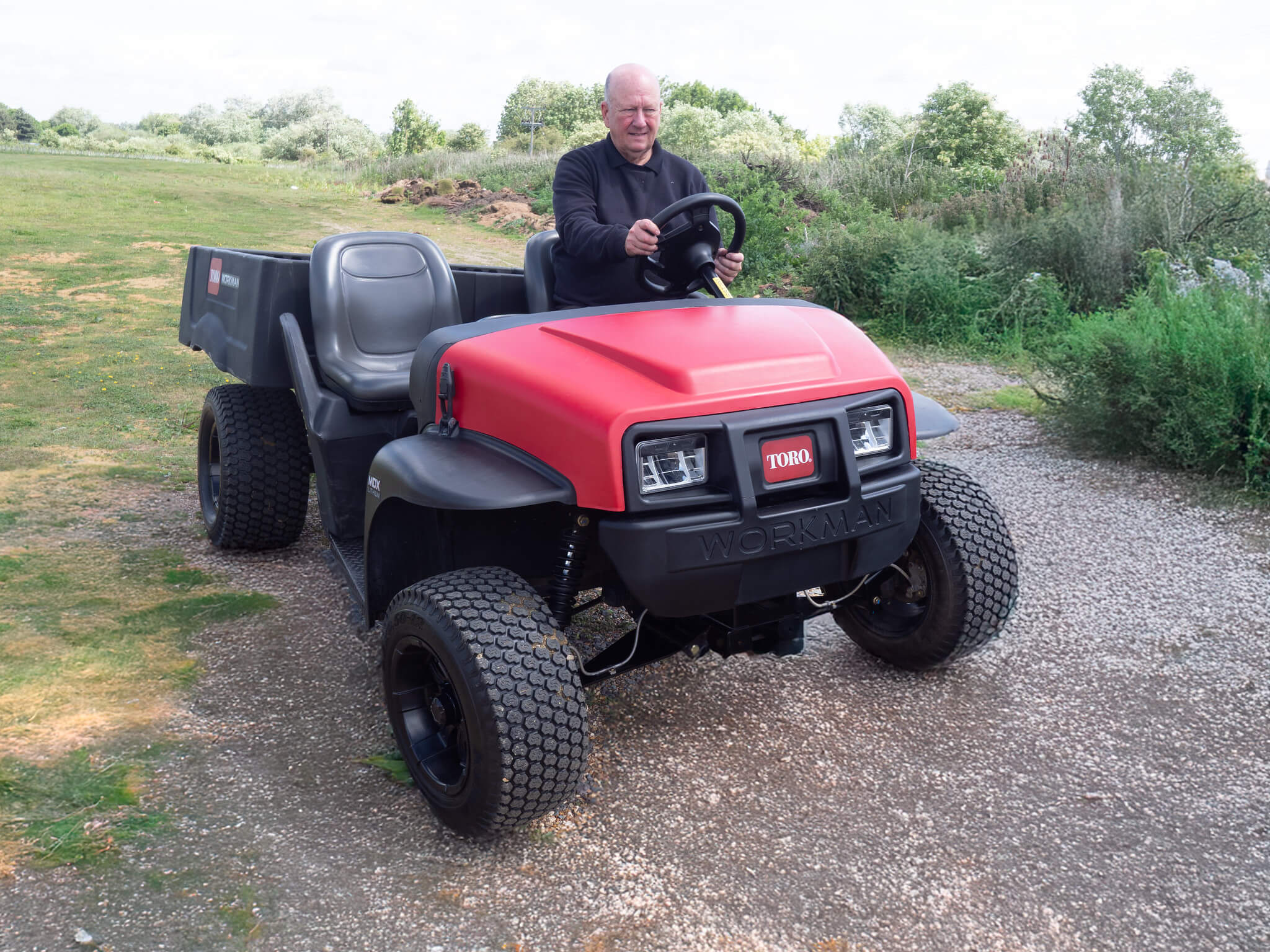

First impressions
Battery electric power is nothing new for a utility vehicle. So what makes the Toro Workman MDX Lithium stand out? This is, after all, a simple twin-seat, two-wheel drive light UTV with a rear cargo bay payload of 567kg. Just like its 14hp petrol engine brother, but with a compact lithium-ion battery as opposed to heavy lead acid batteries providing the energy. The difference you notice from the seat is the available power.
As soon as you drive the MDX Lithium you notice it is whisper quiet, as you would expect from an electric vehicle, but with added get up and go. Then there is the one key feature that proves a big deal in actual use: the automatic parking brake that applies as soon as the MDX comes to a stop. This makes hopping on and off the vehicle, without the risk of it rolling on an incline, a real plus.
Sometimes it’s the little things that leave a lasting impression.
